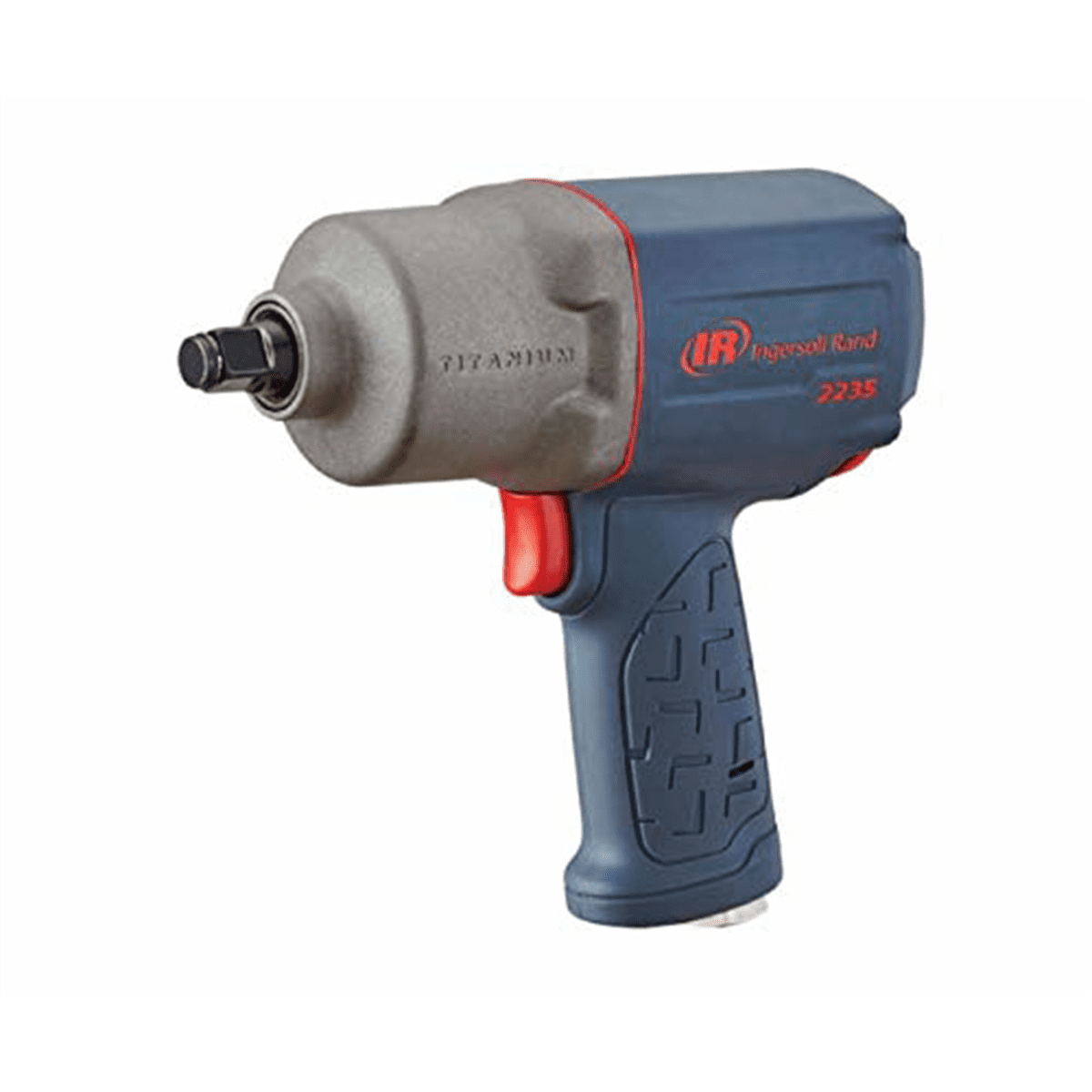

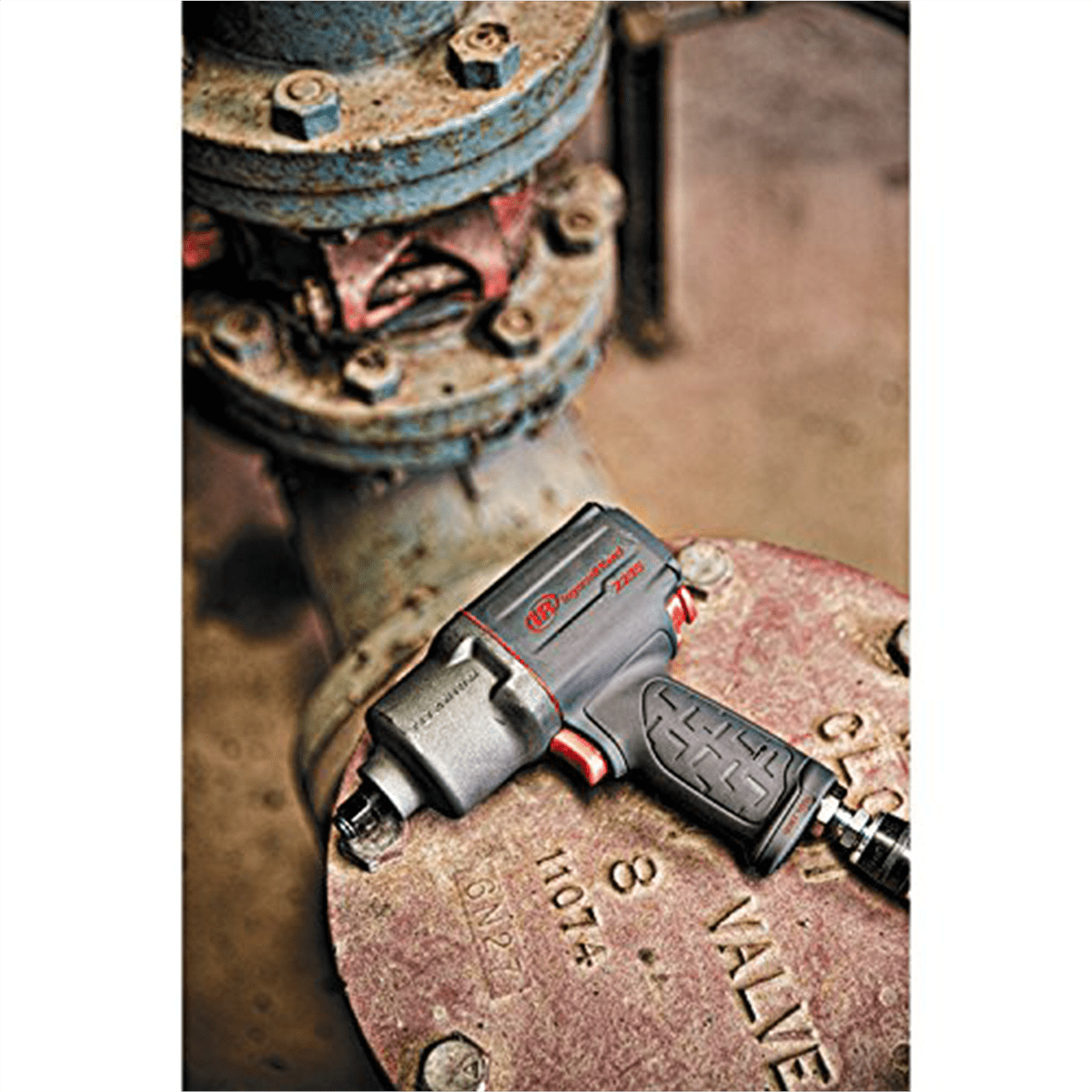

Ingersoll Rand 2235TIMAX, 1/2" Pneumatic Impact Wrench

Ingersoll Rand® 2235 Series 1/2 in. Impact Wrench

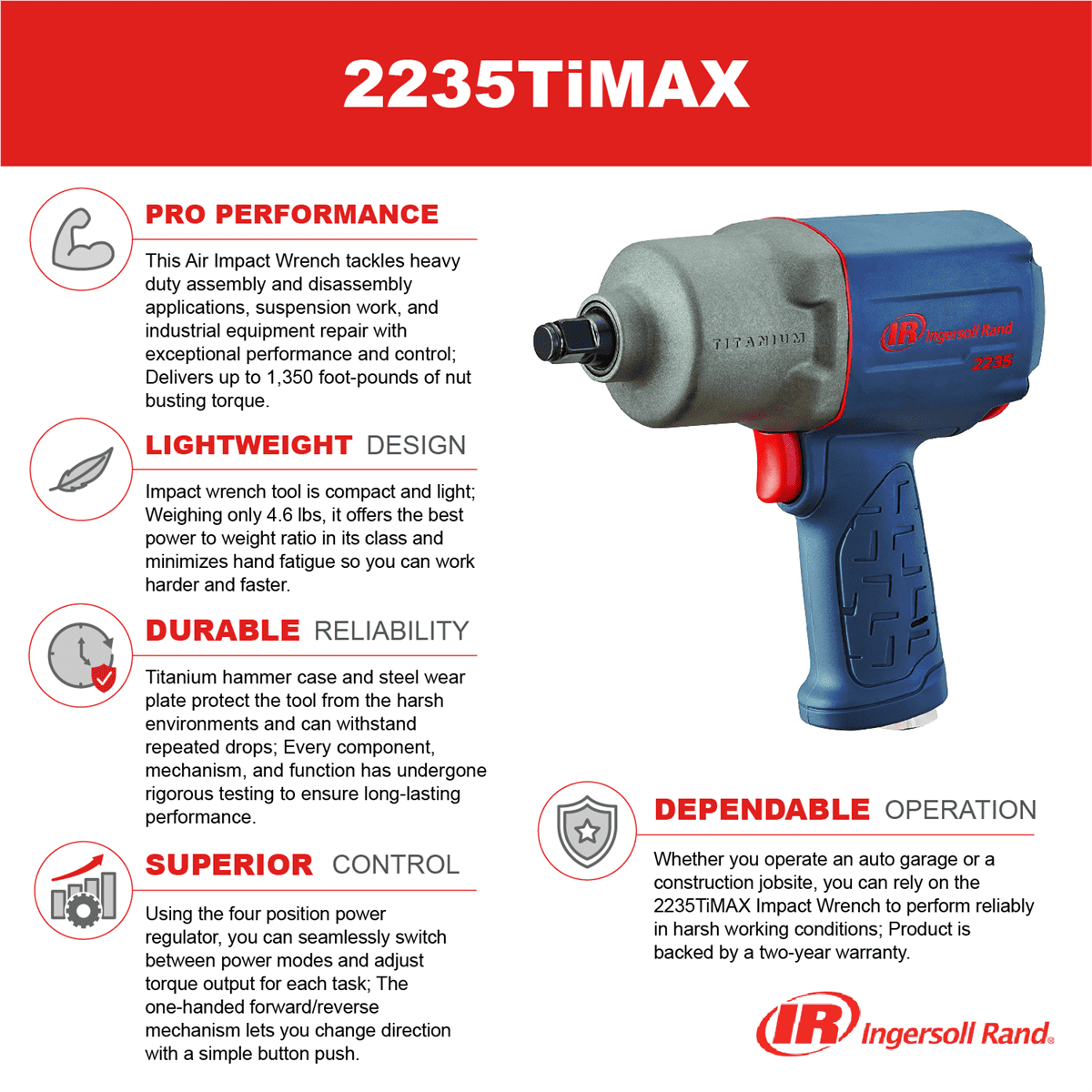

• Features:

  • The high torque output of the powerful vane motor is optimized to increase safety and control over the tool.
  • Finely tuned impact mechanism and motor deliver more torque, durability, and efficiency
  • 1,350 ft-lb nut-busting torque
  • A lightweight, balanced, air impact wrench that weighs just 4.6lbs
  • Titanium hammer case is designed to be strong and durable, to protect the interior components of the air impact wrench
  • Impact- and chemical-resistant housing protects against repeated drops and exposure to shop fluids
  • 2235QTiMAX and the 2235QTiMAX-2 feature patented quiet tool technology reducing sound levels without compromising best-in-class power performance
  • Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction

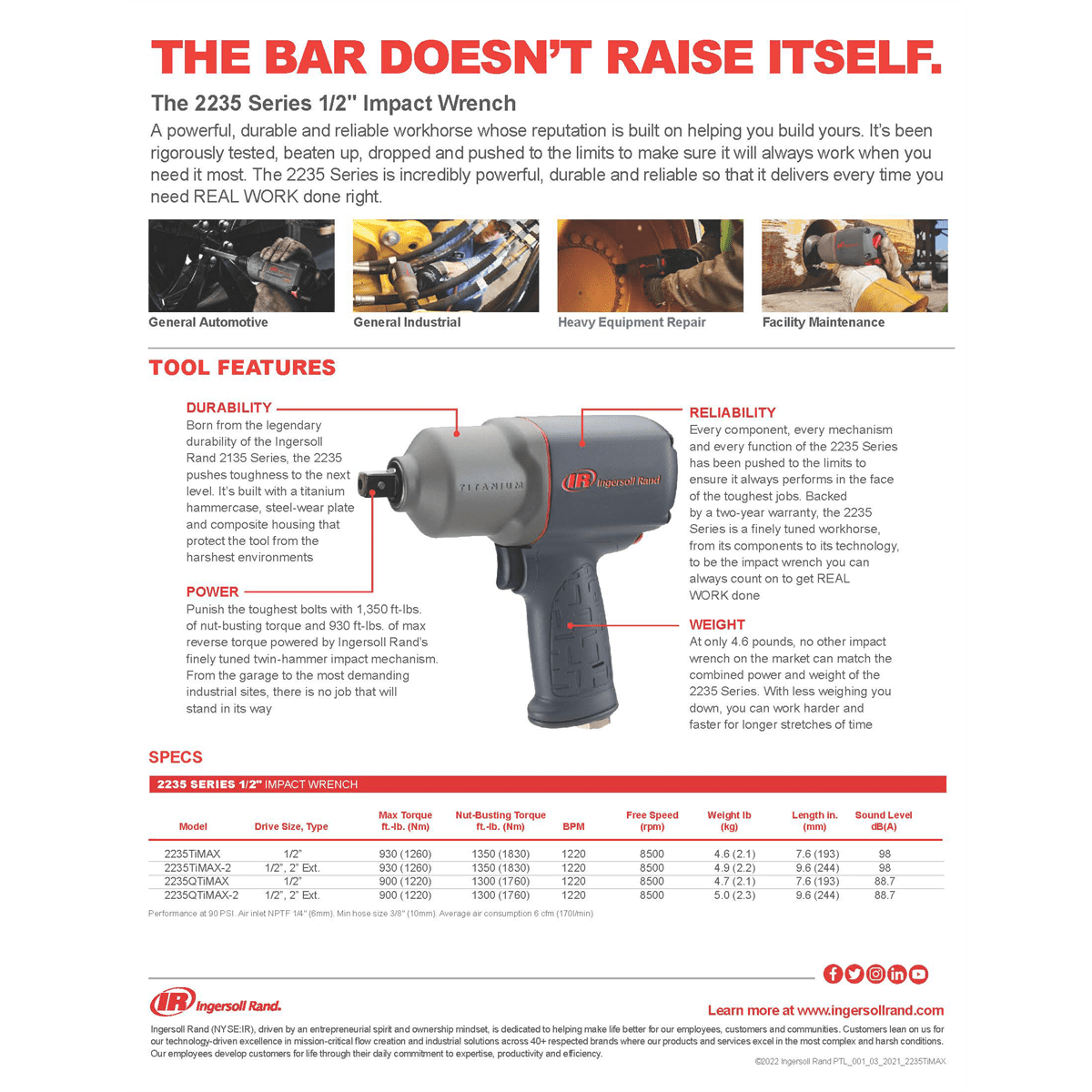

  Specifications:

  • Item Type: Air Impact Wrench
  • Brand: Ingersoll Rand
  • Manufacturer Part Number: 2235TiMAX
  • Configuration: Pistol
  • Actuation: Trigger
  • Drive Size: 1/2 in.
  • Drive Type: Square, Hog-Ring
  • Nut-Busting Torque (ft-lbs): 1300
  • Nut-Busting Torque (Nm): 1760
  • Forward Torque (ft-lbs): 870
  • Forward Torque (Nm): 1180
  • Max Reverse Torque (ft-lbs): 900
  • Max Reverse Torque (Nm): 1220
  • Blows per minute: 1220
  • Free Speed (RPM): 8500
  • Impacting Sound Level dB(A) -- ISO15744 (pressure/power): 91.9 / 102.9
  • Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power) 88.7 / 99.7
  • Vibration Level m/s2 (K): 9 (2.8)
  • Weight (lbs): 4.7
  • Dimensions (in): 7.6 x 2.9 x 7.2 (LxWxH)
  • Air Inlet: 1/4 in.
  • Min Hose Size (in): 44263
  • Min Hose Size (mm): 10
  • Air Consumption @ Load (cfm): 24
  • Air Consumption @ Load (L/min): 680
  • Average Air Consumption (cfm): 6
  • Average Air Consumption (L/min): 170


• Ingersoll Rand 2235TIMAX, 1/2" Pneumatic Impact Wrench

  • Punish the toughest bolts with up to 1,350 ft-lbs. of nut-busting torque and up to 930 ft-lbs. of maximum reverse torque
  • The proprietary twin hammer impact mechanism delivers maximum power and performance
  • Rugged titanium hammer case and steel wear plate ensure maximum durability and service life
  • Finely tuned to push the limits and tackle even the toughest of jobs
  • Best-in-class power-to-weight ratio at only 4.6 lbs
